Products

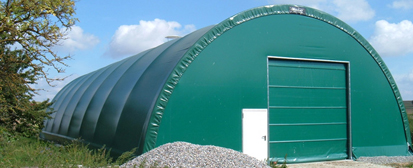

Our LBS Series (Legendary Building System)
The LBS series is our most popular system. This model hall is easily adjustable to your needs and can surprise you with a number of precise details. Some of these are the exceptionally strong arched steel-tower supports that allow 30% more space than traditional sloping roofs, and the roofing membrane passes the sun's rays to create a unique coziness of light. A fresh addition to the series is the new look with straight walls up to 4 meters and width up to 43 meters without supporting pillars. There is a possibility that the height of the buildings will be further increased! Projects with a width of up to 22 meters can be mounted on a common ground even without pre-casting of concrete foundations. With this option, a building can be dismantled and moved away from the baseless base and can be installed in the same way in a new location!
The LBS series is manufactured in the following standard widths and heights.
Arches drawings can be viewed here:
LBS 45 / 14,06 m (W) x 6,59 m (H)
LBS 51 / 16,40 m (W) x 6,71 m (H)
LBS 52 / 15,82 m (W) x 8,02 m (H)
LBS 54 / 16,89 m (W) x 8,27 m (H)
LBS 63 / 18,48 m (W) x 6,43 m (H)
LBS 65 / 19,67 m (W) x 8,94 m (H)
LBS 70 / 20,58 m (W) x 6,47 m (H)
LBS 72 / 21,80 m (W) x 8,99 m (H)
LBS 82 / 25,00 m (W) x 10,65 m (H)
LBS 90 / 27,99 m (W) x 10,83 m (H)
LBS 100 / 29,42 m (W) x 11,06 m (H)
LBS 115 / 34,78 m (W) x 11,33 m (H)
LBS 131 / 40,01 m (W) x 14,04 m (H)
LBS 142 / 43,23 m (W) x 16,27 m (H)
Our SAS Series (Single Arch System)
Are you looking for a simple and economical solution by wanting to take advantage of its flexibility while you build it? Then our SAS series is the right solution for you. Starting from the 6 to 15-meter single-pipe frames, we pass through a baseless foundation through soil pits or anchors and finally get to individual construction on walls or concrete blocks - the SAS series is the ideal type of halls for smaller and medium-sized projects. Depending on the size, the steel frame of the roof structure of this arcade can be constructed from galvanized pipes with diameters of 76 mm, 95 mm and 114 mm. This construction can be assembled without concrete foundations or on concrete foundations.
The SAS series is manufactured in the following standard widths and heights.
Arches drawings can be viewed here:
SAS 16 / 5,00 m (W) x 3,54 m (H)
SAS 21 / 6,50 m (W) x 3,95 m (H)
SAS 26 / 7,92 m (W) x 3,88 m (H)
SAS 30 / 9,14 m (W) x 3,44 m (H)
SAS 31 / 9,30 m (W) x 4,09 m (H)
SAS 33 / 10,00 m (W) x 5,82 m (H)
SAS 40 / 12,00 m (W) x 6,69 m (H)
SAS 44 / 13,50 m (W) x 6,06 m (H)
SAS 50 / 15,00 m (W) x 6,50 m (H)

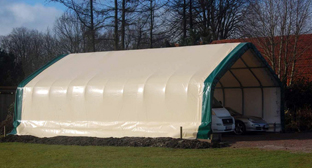

Our Mobile Cover Series
Portable shelters for small buildings. Do you need a portable shelter today but maybe you will need a lasting cover for your car tomorrow? Then we have a solution for you: our mobile buildings are installed quickly, can be used throughout the year and are available in different heights and sizes. A shelter can not be more mobile than that. The quality and craftsmanship of our Made in Germany shelters ensure a long service life. Our versatile experience in manufacturing and use across the globe confirms that Mobile Cover designs even withstand poor weather conditions. To fasten this portable building, we use a system of steel ground nails that plunge deep into the ground and fasten to the shed with appropriate fence clamps.
The Mobile Cover series is manufactured in the following standard widths and heights.
Arches drawings can be viewed here:
Mobile Cover 4,0 m x 4,0 m x 3,18 m (H)
Mobile Cover 4,0 m x 6,0 m x 3,18 m (H)
Mobile Cover 6,0 m x 4,0 m x 3,64 m (H)
Mobile Cover 6,0 m x 6,0 m x 3,64 m (H)
Our TITAN Series
If you want a whole new dimension in warehouse construction, the solution for you is the TITAN series. Whether it will be 30 or 95 meters wide, the freestanding (without supporting pillars) construction gives you total freedom of movement and a variety of heights up to 16 m, all entrances and doors, the advantages are numerous and the possibilities almost unlimited. Especially practical TITAN roofing facilities are easy to dismantle, can be continuously extended and combined with other LBS and CAC solutions.
The TITAN series is manufactured in the following standard widths and heights.
Arches drawings can be viewed here:
Titan 100 / 29,53 m (W) x 13,00 m (H)
Titan 105 / 32,11 m (W) x 13,70 m (H)
Titan 110 / 34,79 m (W) x 14,58 m (H)
Titan 120 / 37,45 m (W) x 15,32 m (H)
Titan 130 / 39,97 m (W) x 16,06 m (H)
Titan 140 / 42,55 m (W) x 16,80 m (H)
Titan 148 / 45,24 m (W) x 17,58 m (H)
Titan 157 / 47,82 m (W) x 18,32 m (H)
Titan 165 / 50,41 m (W) x 19,06 m (H)
Our HYBRID series
Self-supporting structures of the HYBRID buildings can be built up to a width of 50m and variable heights up to 13m. Accessory options are virtually unlimited - different door and door options, side curtain, ventilation options and much more provide maximum flexibility.
The HYBRID series is manufactured in the following standard widths and heights.
Arches drawings can be viewed here:
Hybrid 96 / 29,91 m (W) x 9,80 m (H)
Hybrid 106 / 32,88 m (W) x 10,27 m (H)
Hybrid 115 / 35,69 m (W) x 10,74 m (H)
Hybrid 124 / 38,54 m (W) x 11,20 m (H)
Hybrid 134 / 41,38 m (W) x 11,66 m (H)
Hybrid 143 / 44,35 m (W) x 12,14 m (H)
Hybrid 153 / 47,16 m (W) x 12,60 m (H)
Hybrid 164 / 50,02 m (W) x 13,06 m (H)
Our ROXY Series
Regardless of the weather, train your horses always dry. Our disc hale ROXY is the ideal solution for indoor and indoor ride training. The hall is designed for professional horse sport activities!
With diameters of 15.4 m to 20.80 m and a height of more than 4 m above the holes of the hoof, ROXY should not be missed on any professional and modern horse farm. It is your ideal complement to the riding arena.
Our hall is made of galvanized steel components and a robust, multilayer and transparent roofing membrane, thanks to which you can handle without additional lighting. Optionally, it is available with open side panels or different panels on the side walls. In this construction project you can choose to be installed on soil without concrete or on pre-cast concrete foundations.
The ROXY series is manufactured in the following standard widths and heights.
Arches drawings can be viewed here:
Roxy 15 / Ø 15,4 m 6,14 m (H)
Roxy 17 / Ø 17,5 m 6,47 m (H)
Roxy 21 / Ø 20,8 m 6,97 m (H)
REASONS TO USE OUR BUILDINGS
1. Natural lighting - the lighting can be expensive , and the windows of the building often fail to provide the right amount of natural light needed for the animals and work inside. The buildings are covered with Powertec III, which allows daylight to penetrate even the exterior of the structure. Natural light bay facility during the day, effectively reducing your electricity bill for lighting by 100% during the day. Natural light creates a safe working environment. With natural light coming from all directions simultaneously by roofing system to ensure that there are no dark areas and shadows and dark spots. No matter where you are in the building is clearly visible and your employees can work safely.
2. Airflow = natural ventilation - Traditional structures require extensive and expensive ventilation systems to generate proper air flow and maintain the standard for air quality. Losberger Cover All buildings to eliminate the need for expensive and complex ventilation systems because of the natural flow of air which comes from the design of the structure the ergonomics. Great headroom creates such a large volume of air in the building is always fresh and clean scent , which helps to keep the floor dry and corners . This naturally leads to a ventilation system, healthy humans and animals and a decrease in veterinary accounts for treatment of a respiratory disease.
3. . Free interior space - the purchase of buildings Cover all, you could use the full interior space of one party to another without the use of props and stabilizing ropes, ie maximum usable area relative to the value of the building. Fortunately, the supporting arches Losberger Cover All of our buildings are made of hot deep galvanized steel. For example, Losberger Cover All `s “'TITAN" high profile allow high trucks to maneuver when unloading their cargo inside the building with their body style ( gondolas ) up in the air because there is no low beams and ropes to prevent this action. by uploading inside to eliminate environmental concerns , which may cause dust to the atmosphere.
4. Versatility - buildings Cover all, used for everything from storage facilities, storage, livestock and entertainment venues to cover sports fields and hockey rinks! The design makes it easy to extend the building in the future if you need more space. These buildings can easily be moved to a new location if you need it. The cost to make these changes in the traditional structure can be overwhelming, but with building mobile Losberger Cover All, this is included in the price. Leasing companies help to finance this type of building, because they are so comfortable when moving.
5. Installation and maintenance - Losberger Cover all building can be installed for at least two days, so you save money on labor costs . Buildings covered with fabric Powertec III, require little maintenance thanks to the natural durability of the materials used in their construction . Garntsioneiyat period is 15 years old! In the absence of a roof of an old building with solid foundations , roofs can easily adapt to the existing base. Thus, your roof requires repair with tiles or other roofing materials , saving your time and money to bring the building into production condition. If you are making plans to build a new building , consider the advantages of Coverall buildings and the wide range of activities they cover ! But sometimes it just saves money !
